Expanded Graphite Tape

Expanded Graphite Tape

Product Details:

X

Product Description

ASIATIC-7000


Technical Data

Temperature range

200OC to 650OC in steam condition
200OC to 600OC in oxidizing condition
200OC to 3000OC in non-oxidizing condition

Operating Pressure

300 kg/cm2

Chemical resistance

PH range 0-14 (except molten alkali, concentrated nitric acid, sulphuric acid with dissolved oxidizing salts, perchloric acid)

Chloride content

<50 ppm

Carbon content

>98 %

Tensile strength

650 psi to 1500 psi

Compressibility

45.00%

Thermal conductivity

120 Kcal/mHr O C parallel to the surface
4 Kcal/mHr O C perpendicular to the surface


AVAILABILITY

ASIATIC 700 PS

Homogeneous plain expanded flexible graphite sheet
Sheet size : 1000 mm X 1000 mm
Sheet Thickness : 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 4.0 mm
Rolls Size : 1 M Width X 50 M Length X 0.5 mm Thickness

ASIATIC 7000IS

Expanded flexible graphite sheets reinforced with flat or perforated stainless steel
Sheet Size : 1000 mmX1000mm
Sheet Thickness : 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm(other thicknesses available on request)

ASIATIC 7000 CG

Expanded flexible graphite pre cut gaskets of PS/IS series sheets
All standard and non-standard size and shape of cut gaskets shall be supplied

ASIATIC 7000TT

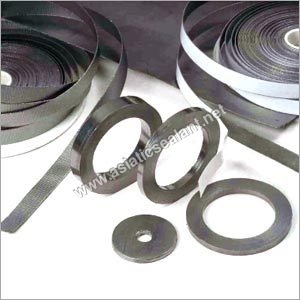

Expanded flexible graphite textured tape. Useful as valve stem packing and on site gasket making an flanges &  rebuild of existing gasket area.
Available as plain tapes, corrugated tapes and self adhesive tapes
Tape Sizes
10.0 mm width X 10 M length X 0.5 mm Thickness
12.5 mm width X 10 M length X 0.5 mm Thickness
19.0 mm width X 10 M length X 0.5 mm Thickness
25.0 mm width X 10 M length X 0.5 mm Thickness
(other width available on request)

ASIATIC 7000 GR

Expanded flexible graphite precision die formed custom-made packing rings for dynamically sealing pump shaft, valves spindle, plungers, agitators, fans etc
